Reolink PoE Systems Compared: 8 to 16 Channels, 5MP to 4K

Best for
Big properties needing room to grow

The REOLINK 16CH 4K Security Dome Camera system, RLK16-800D8, is the biggest setup here. Its NVR has 16 channels and a pre-installed 4TB drive, and you can add a second drive of up to 8TB for a total of 16TB. The dome cameras record true 4K (8MP, 3840 by 2160) with 100 ft night vision and person and vehicle detection.

Recording can be 24/7 or motion-triggered, and the free Reolink app gives remote live view and playback on iOS and Android. The default frame rate is 20fps on the main stream and 10fps on the substream. Reolink notes that to get the full 4K effect you should set the camera to its Clear stream at the highest bitrate and view on a 4K monitor or TV.

The listing does not spell out how many cameras come in the box, so confirm the count on the product page. The key advantage is headroom: with 16 channels, you can start with the included cameras and add more later without replacing the recorder. If you only need a handful of cameras, an 8-channel kit is simpler.

• 16-channel NVR
• 4K 8MP dome cameras, 100 ft night vision
• 4TB HDD, expandable to 16TB total
• Person and vehicle detection

Best for
First PoE system on a tighter scope

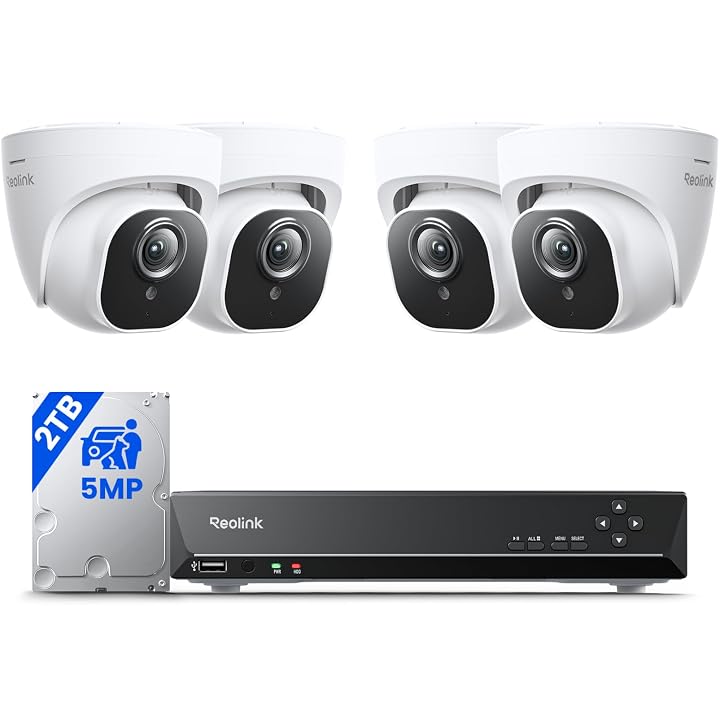

The REOLINK 5MP 8CH Home Security Camera system, RLK8-520D4-5MP, is the entry point. Its cameras record 5MP (2560 by 1920) through a 4.0 mm lens, with IR night vision to 100 ft and an IP67 weatherproof rating. Smart detection covers people, animals and vehicles, though Reolink advises updating to the latest firmware for that.

It is the only kit here that highlights a built-in microphone, so you can hear as well as see. The 8-channel NVR ships with a 2TB drive that Reolink says holds about ten days of recording before overwriting, and you can connect one external 8TB drive through an e-SATA port.

This suits a first-time installer covering a front door, driveway and back yard. The 5MP resolution gives way to the 4K kits when you need to read plates or faces at a distance.

Best for
Driveways and yards needing tracking

Best for
4K bullet coverage for a house

The REOLINK 8CH 4K 8MP Security Camera system, RLK8-800B6, steps up to 4K bullet cameras. Each camera uses 18 infrared LEDs for 100 ft of night vision, plus 3D-DNR noise reduction to keep dark footage clean. Detection covers people and vehicles, and the frame rate is 20fps.

Cameras connect to the NVR with Ethernet runs of up to 300 ft, and setup is a three-step process through the Reolink app. The 2TB drive handles 24/7 recording, an external drive of up to 8TB can be added, and total storage expands to 16TB. Reolink backs it with a 2-year warranty and lifetime tech support.

This is the balanced pick for a house: 4K detail and eight channels of room. Keep in mind that 4K streams fill a 2TB drive much faster than 5MP, so plan on adding storage if you record continuously. The listing does not state how many cameras are included.

The REOLINK 8CH 4K Security Camera System with PT auto-tracking, RLK8-800PT4, uses cameras that move. Each one pans 355° and tilts 50°, follows a target automatically when motion is detected, and stores up to 64 preset points. The F1.6 aperture, 3000K warm lights and IR LEDs give both color and black-and-white night vision in 4K.

It adds two-way talk, alerts by app push, email and NVR buzzer, and IP65 weather resistance. Setup uses one PoE cable per camera with an integrated bracket, and the Reolink app and client support up to 20 user accounts. Frame rate is 25fps. There is a storage discrepancy: the features describe a built-in 2TB drive expandable to 16TB, while the specification field lists 16TB, so expect 2TB out of the box.

This suits wide open areas like a long driveway or a yard with a single entry path. The trade-off of any tracking camera is that when it swings to follow one target, it is no longer watching its original view, so pair it with fixed cameras for full coverage.

Best for
Wide yards with one camera

The REOLINK Duo 3 PoE Dual-Lens PoE camera is a single camera, not a kit. Two 4K sensors are stitched by a 4-core SoC into one 180° panoramic image, which Reolink describes as 16MP. It has an F1.6 aperture, a 1/2.7-inch CMOS sensor, 6 IR LEDs for 100 ft night vision, and color night vision.

Features include Motion Track, which shows a target’s full movement in a single image, person, car and animal detection, two-way talk, up to 16x smart playback and time-lapse. It is IP67 rated for wall or ceiling mounting. The listing is clear that no NVR, PoE switch, injector or DC adapter is included, so budget for one of those.

The Duo 3 suits a wide back yard or parking area that would otherwise need two cameras. The RLN8-410 listing does not name the Duo 3 specifically, but it does say it works with Reolink 16MP PoE cameras; confirm firmware compatibility before pairing. See our guide to Reolink outdoor PoE cameras for more single-camera options.

Best for
Building your own camera mix

The REOLINK RLN8-410 8CH NVR Network Video recorder is for readers who want to choose their own cameras. It has 8 PoE channels with cable runs up to 330 ft, a built-in 2TB drive with room for an extra 8TB, HDMI and VGA output, two USB ports and a 25 W draw.

It works only with Reolink IP cameras, including their 16MP, 12MP, 4K, 5MP and 4MP PoE models, and does not support third-party cameras. A built-in DHCP function lets it run as an independent system with or without internet, and it integrates human, vehicle and animal detection from compatible cameras. The free app and client run on iOS, Android, Windows and Mac without monthly fees.

It suits a builder mixing a Duo 3 with a couple of fixed Reolink PoE cameras. If you want everything in one box, a kit is simpler.
