Renogy PWM Charge Controllers and When MPPT Makes Sense

Best for
12V RV systems with lithium batteries

The Renogy Wanderer Li 30A PWM Solar Charge Controller is the 12V workhorse of the range and the model most people mean by the Renogy Wanderer 30A. It handles lithium, AGM, gel and flooded batteries with four charging stages: bulk, boost, float and equalization.

It is compact at 5.5 x 3.9 x 1.8 inches and mounts on a DIN rail or wall without tools. The casing is rated IP32, which covers light drips rather than real water exposure. The PV input limit is 25V, so it pairs with 12V-class panels wired in parallel. One note: the features say it auto-selects the charging curve, while the specification highlight says AGM, gel and flooded are auto and lithium is set manually. Bluetooth monitoring through the DC Home app needs the separate BT-1 module. The warranty is 1 year, shorter than the other controllers here.

Choose the Wanderer Li 30A for a 12V van or RV with a few panels and a lithium battery. If your system is 24V, look at the Adventurer or Wanderer 10A instead.

• 30A PWM for 12V systems
• Lithium, AGM, gel and flooded support
• 25V PV input
• Optional BT-1 Bluetooth

Best for
Wet marine and outdoor mounts

The Renogy Voyager 20A PWM Solar Charge Controller is the Renogy Voyager 20A, built for exposure. It carries an IP67 rating, and Renogy says it stays operational in water spray, rain or condensation, which makes it the choice for boats or outdoor mounts.

It uses four-stage PWM charging (bulk, absorption, float and equalization) and protects against reverse polarity, overcharge, short circuit, reverse current, overload and over-discharge. The backlit LCD shows charging current, generated energy, temperature, battery voltage and error codes. The title and features say it senses 12V or 24V automatically with gel, AGM or flooded batteries and has a lithium activation feature, though the specifications list only 12 volts. It measures 6.08 x 3.83 x 1.4 inches.

Pick the Voyager for marine or exposed installs up to 20A. For more current in a dry location, the 30A models are the step up.

Best for
Small cabin or shed kits

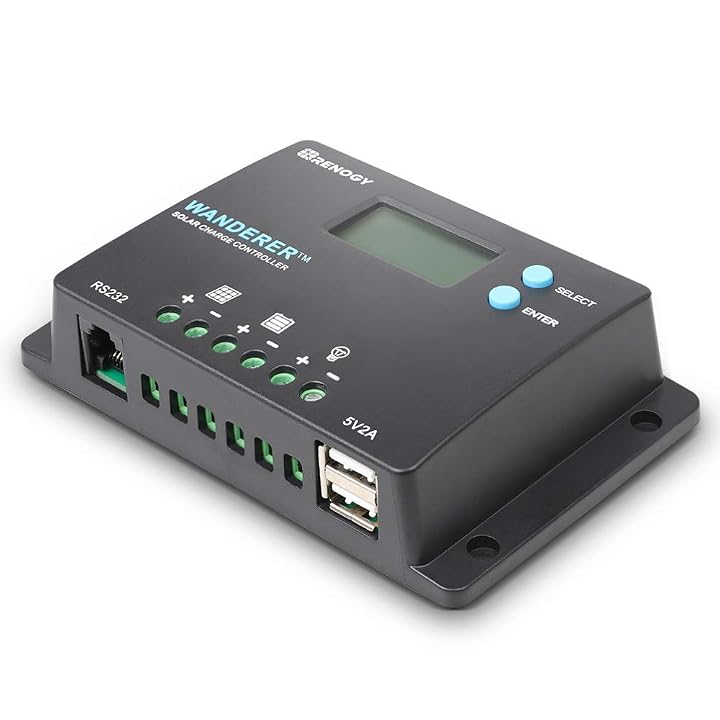

The Renogy Wanderer 10A PWM Solar Charge Controller is the Renogy Wanderer 10A, a small 12V/24V controller for starter kits. It accepts up to 50V of PV input, which is double the Wanderer Li’s limit, and supports AGM, gel, flooded and lithium batteries, with lithium set manually.

Its extra trick is load control: manual, automatic and timed modes let you run lights, pumps or other DC loads straight from the controller. Self-consumption is under 10mA, so it barely drains the battery. A backlit LCD shows voltage, current and status, the listing mentions USB charging, and an RS232 port connects to the DC Home app through the BT-1 module, sold separately. The model is RNG-CTRL-WND10 with a 2-year warranty. If you are building from scratch, a Renogy solar panel kit often pairs panels with a controller like this.

This suits a shed, a small cabin light setup or a single-panel trial. Anything above 10A of charging needs a bigger controller.

Best for
Clean flush-mount van builds

The Renogy 30A 12V 24V PWM Solar Charge Controller is the Renogy Adventurer 30A. It auto-detects 12V or 24V systems and charges lithium, AGM, gel and flooded batteries across four stages, and Renogy says it can revive over-discharged lithium batteries.

The design is meant to flush mount into a wall, with a surface-mount kit included, which gives van builds a clean, finished look. It is negative ground, has a backlit LCD with self-diagnostics, and works with the BT-1 module for app monitoring. It operates from -4 to 140 degrees Fahrenheit with automatic temperature compensation and is backed by a 2-year warranty. It measures 6.56 x 4.5 x 1.9 inches. The listing does not state its PV input limit or a waterproof rating.

Choose the Adventurer for a 24V system or a flush-mounted panel in a van. For wet locations, the Voyager is the safer PWM choice.

Best for
Bigger arrays on a budget MPPT

The Renogy 60A MPPT Solar Charge Controller is the Renogy Rover Lite 60A, the entry to Renogy’s MPPT line. It supports 12V, 24V, 36V and 48V batteries automatically and accepts up to 150V of solar input, which Renogy says lets you run six of its 200W panels in series with less wiring.

It operates at full load from -31 to 113 degrees Fahrenheit and adds low-temperature protection for lithium batteries. Clearly labeled ports, an LCD and buttons keep setup simple. It carries FCC, RoHS and CE certifications and a 2-year warranty, and the box includes a battery temperature sensor and mounting screws. The key limit: it works only with the BT-2 Bluetooth module, sold separately. For panels to match, see our guide to the Renogy 200W solar panel.

This suits gamers growing a van or cabin system beyond a couple of panels. It gives way to the full Rover if you want data logging and a longer warranty.

Best for
Large off-grid gaming setups

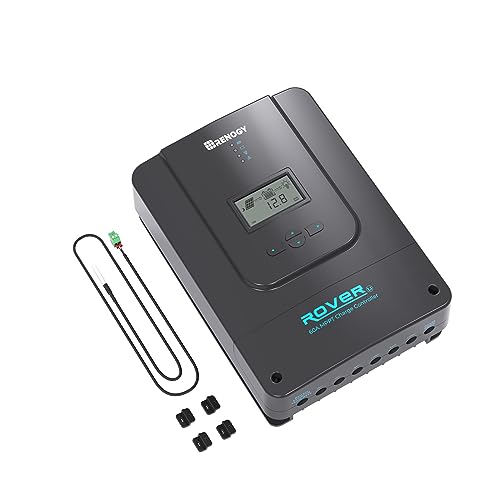

The Renogy Rover MPPT Solar Charge Controller 60A is the Renogy Rover MPPT 60A, the most capable controller here. Renogy quotes 99.9 percent multi-peak tracking efficiency and 98 percent conversion efficiency, with algorithms designed to handle partial shading and cloudy weather. It supports 12V to 48V systems with up to 150V PV input.

It operates from -40 to 149 degrees Fahrenheit with temperature compensation, and TVS surge protection is rated for 6kV. Four-stage charging covers lead-acid batteries, and a lithium reactivation feature revives deeply discharged lithium packs. The backlit LCD logs 365 days of performance data, the Modbus protocol supports smart home kits, and a load terminal can run DC fans and lights on a timer. It works with BT-1 or BT-2 modules, sold separately, and carries a 3-year warranty. Our Renogy Bluetooth module guide explains which module fits each controller.

Pick the Rover for a large array powering a full gaming rig off-grid. For a small 12V van kit it is more than you need.
