Miller Stick Welders: Maxstar, Multimatic or Bobcat for Your Shop

Best for
Garage builders wanting every process

The Miller Multimatic 215 PRO Multiprocess Welder handles MIG, Pulsed MIG, TIG, Pulsed TIG and Stick in one 55 pound box. Its Multi-Voltage Plug connects to 120V or 240V without tools, and Miller rates MIG up to 3/8 inch on 240V or 3/16 inch on 120V. The listing does not give separate stick ratings.

Setup help comes from Auto-Set, which fills in parameters, BeadVision for real-time bead monitoring and Smooth-Start for cleaner arc starts. Program Memory stores favorite settings, and the software updates over USB. The wire drive is angled cast aluminum with a Quick Select three-groove drive roll, it takes 4 or 8 inch spools, handles 0.024-0.035 inch solid and 0.030-0.045 inch flux-cored wire, detects a spool gun automatically and includes a 15-foot MIG gun. For a builder who wants to MIG thin tube for a sim rig and stick weld heavier brackets, this is the most flexible option.

• MIG, Pulsed MIG, TIG, Pulsed TIG and Stick
• 120V/240V Multi-Voltage Plug
• BeadVision, Auto-Set, Program Memory

The Miller Electric Stick Welder Maxstar 161 S is the only dedicated stick machine here, sold as a 120-240V stick package with an X-Case. Miller calls it the most compact stick package in the industry and highlights strong arc performance even with harder-to-run electrodes like E6010.

Separate 120V and 240V power cords detach from the rear panel without tools, so you can plug into common receptacles. The description says the machine weighs 13 pounds, while the spec table lists 36 pounds, likely the full package. A garbled feature line points to a 20 percent duty cycle at 110 amps. The spec table says “No Warranty,” which is unusual, so confirm warranty terms with the seller. It suits builders who only need stick welding for structural steel or outdoor repairs and want a light, portable unit.

Best for
New welders learning settings

The Miller 043125 MIG, TIG, Stick calculator pack is not a welder. It is a set of three small reference calculators covering recommended parameters by material thickness, wire or electrode type and technique for each process.

They are designed to survive shop use and fit in a welding jacket pocket or toolbox. The spec table lists an LED display, which does not match a printed reference tool. For a new welder dialing in a first machine, these take some guesswork out of choosing electrode size and amperage.

The Miller Electric Multimatic 235 (951846) is a 240V multiprocess welder with a 235 amp maximum output, sold here with EZ-Latch running gear. It covers MIG, flux-cored, stick and DC TIG, and Miller aims it at fabrication, maintenance, construction and education.

Features include Gun-On-Demand, Auto-Set Elite, an easy interface, an MDX-250 MIG gun with AccuLock consumables and generator compatibility. The machine alone weighs 63 pounds, while the listing weight of 135 pounds likely includes the running gear. Input is 240V only. It is a step up from the 215 PRO for shops with 240V and heavier daily work.

• MIG, flux-cored, stick and DC TIG
• 235 amp max output, 240V input
• EZ-Latch running gear, MDX-250 gun

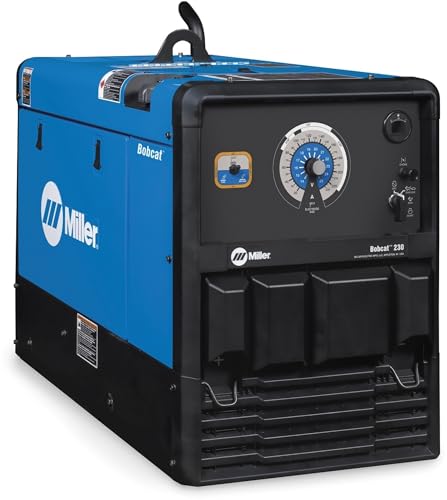

The Miller Electric Bobcat 230 (907824) is an engine-driven welder and generator powered by a 23.5 hp Kohler CH730 gasoline engine. It is built for stick and flux-cored welding in maintenance, construction, farm and ranch work, and also supplies auxiliary power.

A single knob sets and displays amperage and voltage. Miller says it is over 100 pounds lighter and 13 percent smaller than previous models and lighter than any other engine drive in its class. It measures 21 x 38 x 27 inches. This is overkill for a garage desk project, but if you are welding fences or trailers far from an outlet, it is the only machine here that brings its own power.

Best for
MIG-first builders of rigs and frames

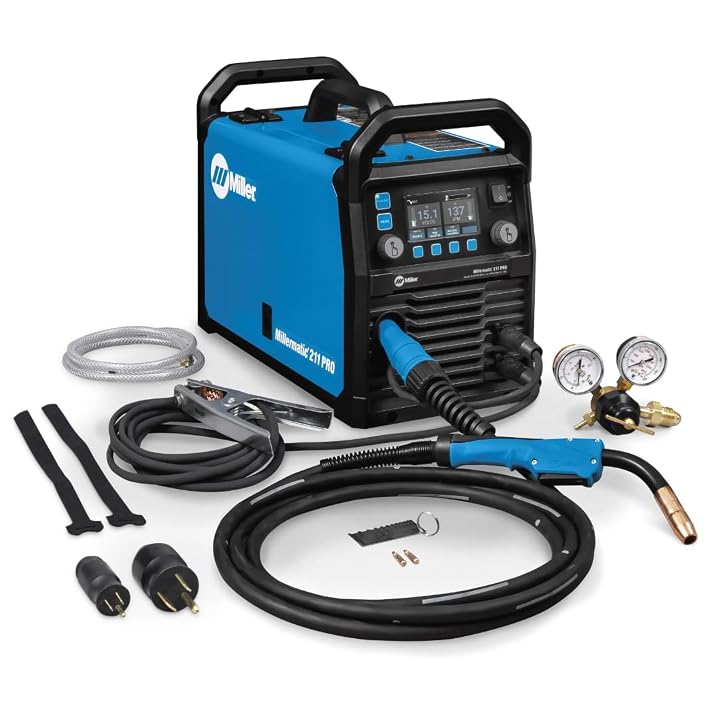

The Millermatic 211 PRO MIG Welder Machine is a MIG welder, and its listing does not mention stick capability. It adds Dyna-Pulse MIG for mild steel, stainless and aluminum (with a spool gun) and flux-cored wire, and it switches between 120V and 240V with a tool-free MVP plug.

It shares BeadVision, Auto-Set, Smooth-Start and Program Memory with the 215 PRO, along with an angled cast-aluminum drive, Quick Select drive roll, 0.024-0.035 inch wire support, spool gun auto-detect and a 15-foot MIG gun. It weighs 47.6 pounds. The spec table lists “fuel_powered,” which is wrong for a plug-in welder. Choose it if your builds are mostly thin tube and sheet and you never plan to stick weld. Upgrading the torch later is easy with a compatible MIG gun.
