Amcrest 16-Channel NVRs Compared for Multi-Camera Setups
Every figure on this page is quoted from the Amazon listing for that model. Scores are the average rating Amazon buyers left. Nothing here was handled or measured by us.
As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.
If you want an Amcrest 16-channel NVR, the choice here is between a plain recorder, an AI recorder and a bigger 32-channel box with built-in PoE. The NV4116-A2 is the straightforward 16-channel unit, the NV4216-AI adds on-board human, vehicle and face detection, and the NV5232E-16P doubles the channel count and adds 16 PoE ports so cameras can draw power over their network cables. All three listings are sold as Amazon Renewed, meaning pre-owned or refurbished units that have been inspected and tested.
We approached these three like server hardware: channel count, bandwidth, decoding capacity, drive bays and whether the box can power your cameras. None of them includes hard drives. We compared listings and specifications rather than building our own camera networks, and we flag the spots where a listing contradicts itself.
JOB SHEET
Which Amcrest NVR Should You Buy
- Straight 16-camera recording with a PoE switch you already own: Amcrest NV4116-A2 16CH NVR
- Room to grow past 16 cameras and built-in PoE power: Amcrest 5Series NV5232E-16P 32-Channel NVR
- Facial recognition, vehicle detection and people counting on the recorder itself: Amcrest NV4216-AI 16CH AI NVR
- Most total storage: NV5232E-16P, with two bays up to 10TB each
- Smoothest 4K multi-view on a monitor: NV5232E-16P, which shows four channels at 4K at once
No. 01
of 3
Amcrest

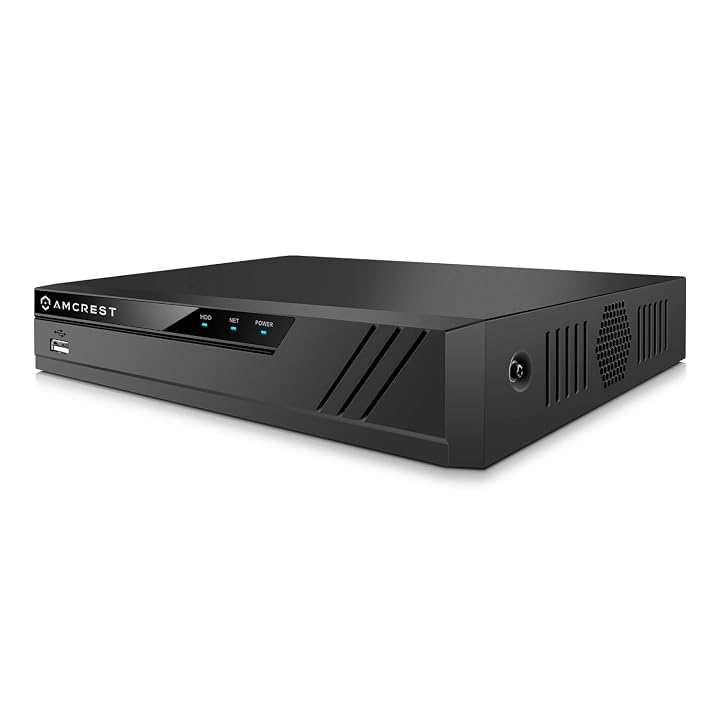

Amcrest 4K 16CH NVR NV4116-A2
4.3
out of 5
Amazon buyer average
Affiliate link. Price and stock live at Amazon and change there, not on this page.
Best for
Simple 16-camera setups with an existing PoE switch
Pros
- 16 channels up to 8MP/4K
- H.265 compression
- Single drive bay up to 10TB
- USB backup
Cons
- No PoE ports
- 80Mbps incoming bandwidth cap
The Amcrest 4K 16CH NVR NV4116-A2 is the no-frills option. It records and shows live view on 16 channels at up to 8MP/4K at 30fps, and supports a single hard drive up to 10TB, not included. Playback decoding is listed as eight channels at 1080p, four at 4MP or two at 4K, all at 30fps. H.265 compression reduces storage use compared with older codecs, which means longer retention on the same drive.
Bandwidth is the spec to watch. The listing gives a maximum incoming bandwidth of 80Mbps and says it records eight cameras at 4K. It then says you can also record eight 4K cameras by switching from H.264 to H.265 and setting a 1792 bit rate per camera, which reads as the same number both ways, so the listing does not clearly state how many 4K streams it handles at defaults versus optimized settings. The title claims support for up to 16 8MP cameras. In practice, plan on lower resolution or tuned bit rates if you want all 16 channels at once.
There are no PoE ports, so you will need a PoE switch or injectors for wired cameras. It must connect to your router by Ethernet, and it has no built-in AI; it can use AI features from Amcrest AI cameras, with support for two AI cameras at 4K. The listing’s 0.27 g weight is clearly an error. Pick this for a simple 16-channel recorder; choose the NV4216-AI if you want the recorder itself to run AI.
- 16 channels up to 8MP/4K at 30fps
- One drive bay, up to 10TB
- 80Mbps incoming bandwidth
- No PoE ports; USB mouse and network cable included
No. 02
of 3
Amcrest
Amcrest 5Series 4K NVR 32-Channel NV5232E-16P
4.5
out of 5
Amazon buyer average
Affiliate link. Price and stock live at Amazon and change there, not on this page.
Best for
Growing systems that want built-in PoE
Pros
- 32 channels, 16 PoE ports
- 320Mbps throughput
- Two bays, up to 2 x 10TB
- QR code app setup
Cons
- Live view: 4 channels at 4K
- More than a 16-camera home needs
The Amcrest 5Series 4K NVR 32-Channel NV5232E-16P is the heavyweight. It records 32 channels at 4K and 30fps, has 16 built-in PoE ports, and takes two hard drives up to 10TB each for 20TB total. Its throughput is listed at 320Mbps, four times the NV4116-A2’s figure, which is the real reason to choose it for a 4K-heavy system.
Built-in PoE means up to 16 wired cameras can plug straight into the recorder for both data and power, which simplifies wiring a lot. You can add more network cameras beyond those ports, including Amcrest Wi-Fi cameras, up to the 32-channel limit. Setup uses a QR code on the NVR scanned with the Amcrest View app. It operates from 14°F to 131°F, and the listing notes CE and FCC certification with UL-compliant power supplies.
One limitation: live view and playback show up to four channels at 4K simultaneously, and the NVR steps the remaining channels down to 1080p. If you watch a big wall of cameras at once, that is normal behavior, not a fault. It is more than most 16-camera homes need, but ideal if you plan to expand.
- 32 channels at 4K, 30fps
- 16 PoE ports built in
- Two drive bays, up to 2 x 10TB
- 320Mbps throughput
No. 03
of 3
Amcrest

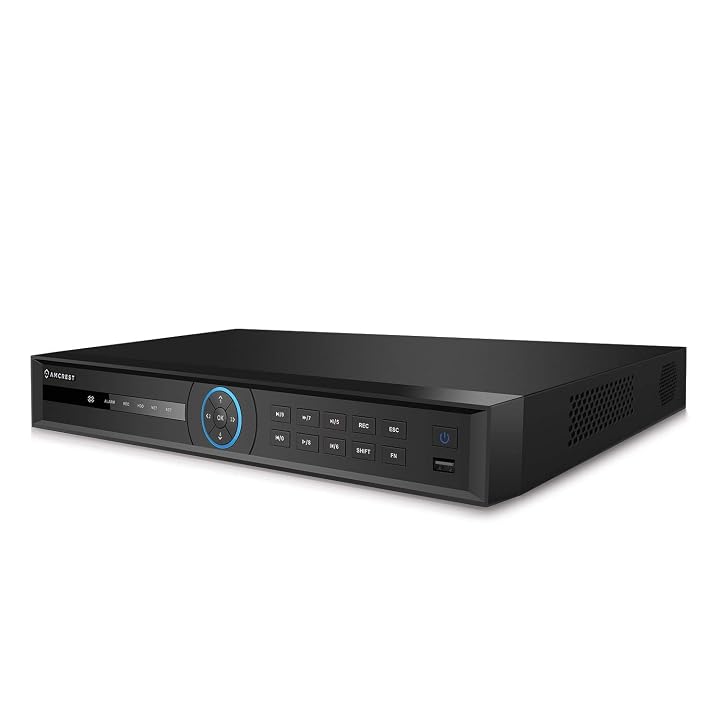

Amcrest 4K NV4216-AI 16CH AI Smart NVR
4.7
out of 5
Amazon buyer average
Well rated
4.6 or better out of 5 on Amazon
Affiliate link. Price and stock live at Amazon and change there, not on this page.
Best for
Setups wanting face and vehicle detection
Pros
- Built-in human and vehicle AI
- Facial recognition, heat map, people counting
- Two bays, up to 2 x 8TB
- Records up to 12MP per description
Cons
- No PoE ports
- Decodes only 2 channels at 4K
The Amcrest 4K NV4216-AI 16CH AI Smart NVR is the one that brings intelligence to the recorder. The listing highlights human and vehicle detection plus facial recognition, along with heat map, people counting and IVS features like tripwire and intrusion. Some IVS features depend on using Amcrest AI cameras.
It records 16 channels at 4K and 30fps, with support described up to 12MP, and it uses H.265 and H.264. Decoding is limited to two channels at 4K or eight at 1080p simultaneously. It supports two hard drives up to 8TB each and has HDMI, a USB port and RCA audio input. There are no PoE ports, so a separate PoE switch is needed. Remote viewing works on iOS and Android through the Amcrest View app with QR code access.
The listing describes this unit as certified refurbished, and it may arrive in a generic box. If AI analysis on regular cameras is the priority, this is the pick. If you need built-in PoE or more than 16 channels, the NV5232E-16P fits better.
- Human, vehicle and face detection
- Heat map, people counting, tripwire and intrusion
- 16 channels at 4K, two drive bays up to 8TB each
- No PoE ports
What Sets These Models Apart
| Model | Channels / PoE | Max storage | Built-in AI |
|---|---|---|---|
| NV4116-A2 | 16 / none | 1 x 10TB | No, uses camera AI |
| NV5232E-16P | 32 / 16 ports | 2 x 10TB | Listing does not specify |
| NV4216-AI | 16 / none | 2 x 8TB | Yes, human, vehicle, face |
Figures in this table are copied from the Amazon listings for these models.
NOTES
Buying Tips for Amcrest NVRs
Budget for bandwidth, not just channels. A 4K camera stream uses much more bandwidth than 1080p, and an NVR’s incoming limit decides how many high-resolution cameras you can record at once. Treat the channel count as the maximum number of cameras and bandwidth as the real ceiling for quality. If you are still deciding between an NVR build and a packaged kit, our look at a complete wired camera system is a useful contrast.
Plan power and drives early. The NV4116-A2 and NV4216-AI have no PoE ports, so add a PoE switch to your shopping list and check that its total power budget covers every camera. None of the three includes a hard drive; surveillance-rated drives are built for continuous writes and are the usual choice for 24/7 recording. Two bays also give you flexibility to add capacity later instead of replacing a full drive.
Think about where the recorder lives. Every model here needs a wired Ethernet connection to your router, so a spot near your network gear, like a media cabinet or a desk next to your gaming rig’s switch, keeps cabling tidy. Give it airflow, since NVRs with spinning drives run around the clock.
Understand what renewed means. The listings describe inspected, tested units, and the NV5232E-16P listing notes eligibility for the Amazon Renewed Guarantee. That can be a smart way to get server-class hardware, but check the return window and test every port and bay as soon as it arrives. For smaller homes, a four-camera kit like those in our 4-camera security system guide may be enough.
FAQ
Are these Amcrest NVRs new?
No. All three are listed as Amazon Renewed, meaning pre-owned or refurbished units that were inspected and tested.
Which Amcrest NVR has PoE ports?
Only the NV5232E-16P, with 16 PoE ports. The NV4116-A2 and NV4216-AI have none.
Can the NV4116-A2 record 16 cameras at 4K?
The title claims support for 16 8MP cameras, but the listing also says its 80Mbps bandwidth records eight cameras at 4K. Plan on tuning bit rates or using lower resolution for all 16.
Does the NV4216-AI need AI cameras?
Its human, vehicle and face detection run on the recorder, but some IVS features are tied to Amcrest AI cameras, per the listing.
Do these NVRs include hard drives?
No. The NV4116-A2 supports one drive up to 10TB, the NV5232E-16P two up to 10TB each, and the NV4216-AI two up to 8TB each.
Do these recorders work over Wi-Fi?
All three require a wired Ethernet connection to your router. They can manage Amcrest Wi-Fi cameras on your network.
